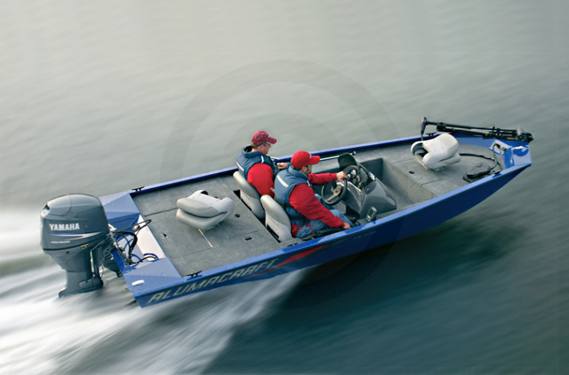

2008 Alumacraft VS 170
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Everything you need, nothing you don’t.


We took our time-tested, all-welded 17' aluminum hull and finished it up just for bass fishermen—without any unnecessary bells and whistles. The VS 170 is simply an honest, hard working boat, easy to maneuver, haul and launch, and it can sneak in and out of the tightest timber, feeder creeks and honey holes. There’s plenty of room, and you get excellent maneuverability and top end performance. Power it up with a quiet outboard and you’ve got just what you ordered.

  • LENGTH: 17'0"
  • WIDTH—Maximum beam: 74"/52"
  • HORSEPOWER–Maximum: 70 HP
  • CAPACITY: 4 persons
  • FUEL TANK: 16 gallons
  • ALL-WELDED HULL–thickness: .102"
DIMENSIONS
  • LENGTH: 17'0" (5.18m)
  • WIDTH–Maximum beam: 74" (1.88m)
  • WIDTH–Maximum bottom: 52" (1.32m)
  • BOW HEIGHT: 22" (.56m)
  • TRANSOM-Width: 74"(1.88m)
  • TRANSOM–Height: 22" (.60m)
CAPACITIES
  • HORSEPOWER–Maximum: 70 HP (51kw)
  • CAPACITY–Persons/lbs.: 4/1100# (4/499kg)
  • WEIGHT-Lbs.: 852# (387kg)
  • FUEL TANK: 16 gal.(60L)
ALL-WELDED HULL
  • All-welded, stepped pad-V hull w/reversed chines
  • THICKNESS bottom/sides: .102" 2.5mm
SEATING
  • SEATS–4 fold-down
  • SOCKETS–2 pin sockets
STEERING & CONSOLE
  • CONSOLE–Fiberglass construction with windscreen; no-feedback steering
  • GAUGES–Speedometer, tach, voltmeter, fuel
CONSTRUCTION FEATURES
  • FLOTATION–Exceeds Coast Guard requirements
  • NMMA certified
  • 5052 GRADE ALUMINUM
  • WELDED-IN ALUMINUM INTERIOR FLOOR
  • WELDED-IN ALUMINUM DECKS–Forward and aft
  • ALL-ALUMINUM TRANSOM
  • CENTER KEEL EXTRUSION
  • RAKE EXTRUSION
  • WIDE GUNNEL RAIL–with vinyl insert
  • INSULATED LIDS
  • BOAT SHIP SHRINK-WRAPPED
LIVEWELLS
  • LIVEWELL–One 23 gal., aerated w/remote drain
STORAGE, ELECTRICAL, ETC.
  • RODS–7' locking compartment w/holders for 3 rods
  • STORAGE–5 compartments
  • BATTERY STORAGE–2 aft
  • POWER–Saltwater resistant system, nav and trim switch on bow 12V power point
  • TROLLING–12 volt harness
  • LIGHTS–Stowable running lights; interior courtesy
  • BILGE PUMP–500 gph
OPTIONAL EQUIPMENT
  • TROLLING MOTOR–Minn Kota
  • GRAPH–Lowrance liquid crystal
PAINT & CARPET
  • Olympic White paint
  • Pacific Blue paint
  • Victory Red paint
  • Gunmetal Gray metallic
  • Midnight Star Gray carpet
  • Urethane exterior finish
BOAT OPTIONS
  • Trolling Motors: Your dealer can help you select the ideal Minn Kota trolling motor for your boat.
  • Lowrance Electronics: The top name in precision fish-locating sonar and GPS navigation.
  • Hydraulic Steering: Smooth, effortless hydraulic steering available for Dominator and Navigator models.
  • Dual Consoles: Two streamlined bubble windshield consoles provide room, protection, and style on Sport models.
  • Seats and Seat Pedestals: Comfortable and durable folding seats, bike style pro seats, and clamp-on seats for Vs and Ts are available. Choose from fixed height pedestals, adjustable, shock absorbing adjustable, and sliding seat posts systems.
  • Bow Cushions: Thick cushions turn the bow fishing platform into a comfortable lounge. Trophy models.
  • Top Set: Our high-rise top set provides lots of headroom, shade and protection from rain. Aft and side curtains add full protection. Sport models.
  • Vinyl Floor: Makes clean up easy with just soap and water. Select models.
  • Spray-in Liner: Protect the interior of your jon boat with a durable, easy-to-clean lining. Select models.
  • Locking Gun Box: This 60" long lockable gun box can be added to many jons.
  • Jon Boat Livewell Box: Optional livewell can be added to ‘32 series and 1436 Lite models of jon boats.
  • Sponsons: Sponsons increase aft buoyancy on tunnel hull models for running in skinny water.
  • Side Console: Steering wheel control available for many AW and riveted jons. Gauges optional.
  • Covers: Choose from tie down mooring covers, tie down travel and snap travel covers.
  • Alumacraft Clothing: Hats, shirts, jackets, wind shirts, T-shirts, sweatshirts and more.

Specifications

Engine
Max HP 70 hp (51 kw)
General
Length Overall 17 ft. 0 in. (5.18 m)
Beam Maximum beam: 74 in. (1.88 m)
Dry Weight 852 lbs (387 kg)
Max Person Capacity 4 Persons
Fuel Capacity 16 gal (60 l)
Max Carry Load 1100 lbs (499 kg)

Compare Models

 Print








Year 2008
Manufacturer Alumacraft
Model VS 170
Style Fishing Boats
Engine
Engine Type
Engine Horsepower
Displacement
Cylinders
Max HP 70 hp (51 kw)
General
Length Overall 17 ft. 0 in. (5.18 m)
Beam Maximum beam: 74 in. (1.88 m)
Draft
Dry Weight 852 lbs (387 kg)
Max Person Capacity 4 Persons
Fuel Capacity 16 gal (60 l)
Impeller / Prop
Max Carry Load 1100 lbs (499 kg)
