$2,599.00

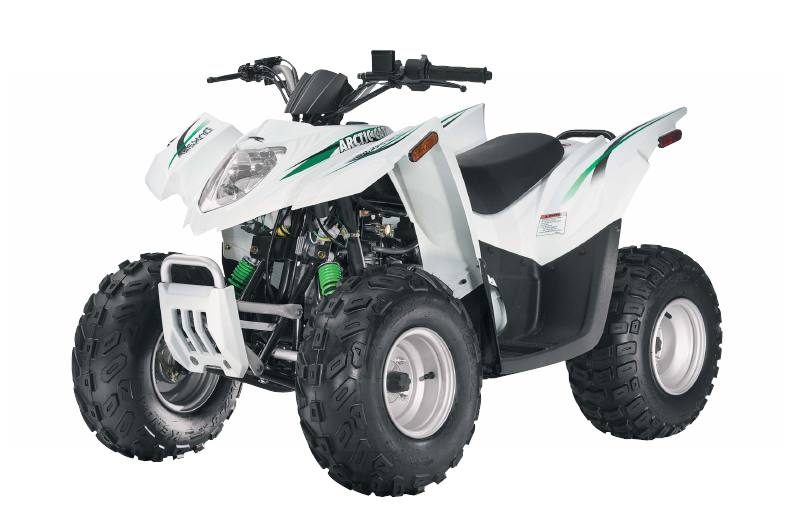

2009 Arctic Cat 90 DVX SE
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Headlight and tailights: This bright, shining headlight makes it look just like the 300 DVX.
  • Independent suspension: The independent single A-arm front suspension features preload adjustable shocks that soak up all the bumps, stumps and dips nature serves up.
  • Styling: Aggressive, sport-styled bodywork for a unique look and flair that is distinctly Arctic Cat. Sporting the same look as the big boy 300 DVX.
Specifications
  • Displacement (cc): 90
  • Engine Type: SOHC, 4-Stroke, 2-Valve
  • Bore & Stroke (mm): 47 x 51.8
  • Cooling System: Air
  • Transmission: Automatic CVT
  • Drive System: 2 WD
  • Overall Width (in./cm): 34.5/87.6
  • Overall Height (in./cm): 37.9/96.2
  • Overall Length (in./cm): 57.8/146.8
  • Wheelbase (in./cm): 38.4/97.5
  • Suspension Travel — Front (in./cm): 2.8/7.1
  • Suspension Travel — Rear (in./cm): 2.9/7.3
  • Ground Clearance (in./cm): 7.3/18.5
  • Suspension Type — Front: Single A-Arm
  • Suspension Type — Rear: Swing Arm
  • Front Brakes: Drum
  • Rear Service Brake: Hydraulic Disc
  • Tires — Front: 20x7-8
  • Tires — Rear: 19x8-8
  • Max Fuel Capacity (gal./liters): 1.45 /5.5
  • Alternator Capacity (amps): 5
  • Dry Weight (lbs./kg): 260/118
  • Minimum Operator Age: 10
  • Available Colors: White/Green
  • Special Features: Reverse, Headlight, Y10 Age Category

Specifications

Engine
Engine Type SOHC, 4-Stroke, 2-Valve
Displacement 90 cc
Bore x Stroke 47 mm x 51.8 mm
Cylinders Single
Engine Cooling Air
Alternator 5 amp
Chassis
Front Suspension Single A-Arm
Front Travel 2.8 in. (7.1 cm)
Front Brake Type Drum
Front Tires 20x7-8
Rear Suspension Swing Arm
Rear Travel 2.9 in. (7.3 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 19x8-8
Dimensions/Capacities
Dry Weight 260 lbs (118 kg)
Fuel Capacity 1.45 gal (5.5 l)
Ground Clearance 7.3 in. (18.5 cm)
Machine Dimensions (LxWxH) 57.8 x 34.5 x 37.9 in. (146.8 x 87.6 x 96.2 cm)
Wheelbase 38.4 in. (97.5 cm)
Drive Train
Drive Train 2 WD
Transmission Automatic CVT
General
Lighting Headlight
Colors White/Green

Compare Models

 Print








Year 2009
Manufacturer Arctic Cat
Model 90 DVX SE
Style Youth
MSRP* $2,599.00
Chassis
Front Suspension Single A-Arm
Front Travel 2.8 in. (7.1 cm)
Front Brake Type Drum
Front Tires 20x7-8
Rear Suspension Swing Arm
Rear Travel 2.9 in. (7.3 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 19x8-8
Frame
Dimensions/Capacities
Dry Weight 260 lbs (118 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 1.45 gal (5.5 l)
Ground Clearance 7.3 in. (18.5 cm)
Machine Dimensions (LxWxH) 57.8 x 34.5 x 37.9 in. (146.8 x 87.6 x 96.2 cm)
Wheelbase 38.4 in. (97.5 cm)
Drive Train
Drive Train 2 WD
Final Drive
Transmission Automatic CVT
Engine
Engine Type SOHC, 4-Stroke, 2-Valve
Displacement 90 cc
Bore x Stroke 47 mm x 51.8 mm
Cylinders Single
Engine Cooling Air
Fuel System
Starting System
Alternator 5 amp
General
Speedometer
Tachometer
Odometer
Lighting Headlight
Colors White/Green
