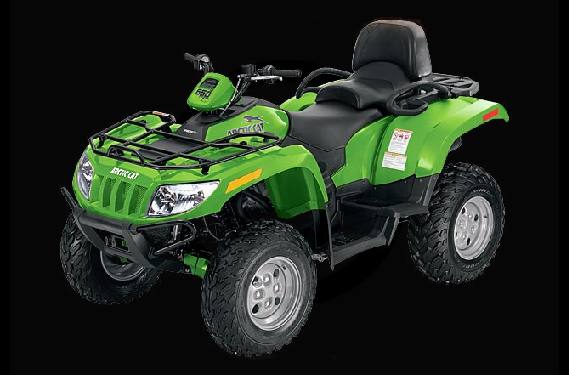

2009 Arctic Cat TRV 650 H1
Request a Quote Financing Calculator Request a Brochure Financing Form

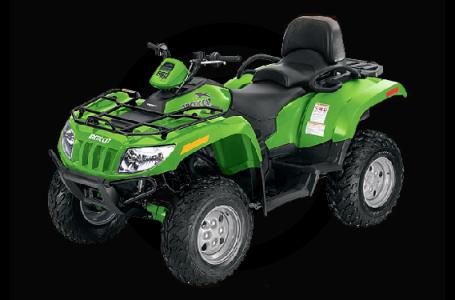

Click here to view full image.
Lime Green
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    650 H1 Engine
    • Time-tested 641cc liquid-cooled EFI features a single overhead cam and a single cylinder. The "H" stands for hemispherical combustion chamber, which delivers more efficient combustion resulting in better perfromance. Electronic Fuel Injection ensures easy starts and consistent performance in various climates or altitudes.
    Duramatic Automatic Transmission
    • Durable, efficiant automatic CVT is easy to operate, adds dynamic engine braking and delivers maximum horsepower and torque to the driveshaft. Also features a Hi/Low shift range and a long-life, maintenance-free belt.
    Removable Passenger Seat & Optional 3-In-1 Versatility
    • Take advantage of the comfortable passenger seat and new plastic touring rack for an awesome 2-person ride down an endless trail. Need your TRV to do more? Simply remove the passenger seat by pulling two pins, and add an optional 200-lb.-capacity Speedrack. Or add an optional heavy-duty cargo box, designed with a handy tailgate for easy loading and unloading. When it comes to versatility, this machine can't be beat.
    Electric 2WD/4WD And Front Differential Lock
    • When the going gets tough, electric shift allows the rider to shift from 2-wheel drive to 4-wheel drive on the fly with just a push of a button. For maximum traction, activate the front differential lock.
    Specifications
    • Displacement (cc): 641
    • Engine Type: SOHC, 4-Stroke, 4-Valve
    • Bore & Stroke (mm): 98 x 85
    • Cooling System: Liquid w/Fan
    • Transmission: Automatic CVT w/EBS, Hi/Lo Range & Reverse
    • Drive System: 2/4 WD + Electric Diff Lock
    • Overall Width (in./cm): 47.5/121
    • Overall Height (in./cm): 50.3/127.76
    • Overall Length (in./cm): 98.6/250.44
    • Wheelbase (in./cm): 58/147.3
    • Suspension Travel—Front (in./cm): 10/25.4
    • Suspension Travel—Rear (in./cm): 10/25.4
    • Ground Clearance (in./cm): 11/27.9
    • Suspension Type—Front: Double A-Arm
    • Suspension Type—Rear: Double A-Arm
    • Front Brakes: Hydraulic Disc
    • Rear Service Brake: Hydraulic Disc
    • Tires—Front: 25x8-12
    • Tires—Rear: 25x10-12
    • Max Fuel Capacity (gal./liters): 5.5/20.8
    • Rack Capacity—Front (lbs./kg): 100/45.4
    • Rack/Box/Flatbed Capacity—Rear (lbs./kg): 50/22.68
    • Towing Capacity (lbs./kg): 1050/477
    • Alternator Capacity (amps): 25
    • Speedometer: Digital
    • Odometer: Digital
    • Dry Weight (lbs./kg): 719/326.13
    • Minimum Operator Age: 16
    • Available Colors: Lime Green

    Specifications

    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 641 cc
    Bore x Stroke 98 mm x 85 mm
    Cylinders Single
    Engine Cooling Liquid w/Fan
    Alternator 25 Amps
    Chassis
    Front Suspension Double A-Arm
    Front Travel 10 in. (25.4 cm)
    Front Brake Type Hydraulic Disc
    Front Tires 25x8-12
    Rear Travel 10 in. (25.4 cm)
    Rear Suspension Double A-Arm
    Rear Brake Type Hydraulic Disc
    Rear Tires 25x10-12
    Dimensions/Capacities
    Dry Weight 719 lbs. (326.13 kg)
    Front Rack Capacity 100 lbs. (45.4 kg)
    Rear Rack Capacity 50 lbs. (22.68 kg)
    Towing Capacity 1050 lbs. (477 kg)
    Fuel Capacity 5.5 gal. (20.8 l)
    Ground Clearance 11 in. (27.9 cm)
    Machine Dimensions (LxWxH) 98.6 in. (250.44 cm) X 47.5 in. (121 cm) X 50.3 in. (127.76 cm)
    Wheelbase 58 in. (147.3 cm)
    Drive Train
    Drive Train 2/4 WD + Electric Diff Lock
    Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
    General
    Speedometer Digital
    Odometer Digital
    Colors Lime Green

    Compare Models

    		 Print








    Year 2009
    Manufacturer Arctic Cat
    Model TRV 650 H1
    Style Multi-Rider
    Chassis
    Front Suspension Double A-Arm
    Front Travel 10 in. (25.4 cm)
    Front Brake Type Hydraulic Disc
    Front Tires 25x8-12
    Rear Suspension Double A-Arm
    Rear Travel 10 in. (25.4 cm)
    Rear Brake Type Hydraulic Disc
    Rear Tires 25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 719 lbs. (326.13 kg)
    Front Rack Capacity 100 lbs. (45.4 kg)
    Rear Rack Capacity 50 lbs. (22.68 kg)
    Towing Capacity 1050 lbs. (477 kg)
    Fuel Capacity 5.5 gal. (20.8 l)
    Ground Clearance 11 in. (27.9 cm)
    Machine Dimensions (LxWxH) 98.6 in. (250.44 cm) X 47.5 in. (121 cm) X 50.3 in. (127.76 cm)
    Wheelbase 58 in. (147.3 cm)
    Drive Train
    Drive Train 2/4 WD + Electric Diff Lock
    Final Drive
    Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 641 cc
    Bore x Stroke 98 mm x 85 mm
    Cylinders Single
    Engine Cooling Liquid w/Fan
    Fuel System
    Starting System
    Alternator 25 Amps
    General
    Speedometer Digital
    Tachometer
    Odometer Digital
    Lighting
    Colors Lime Green
    Warranty
