$9,899.00

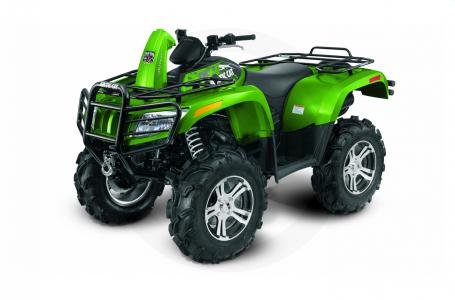

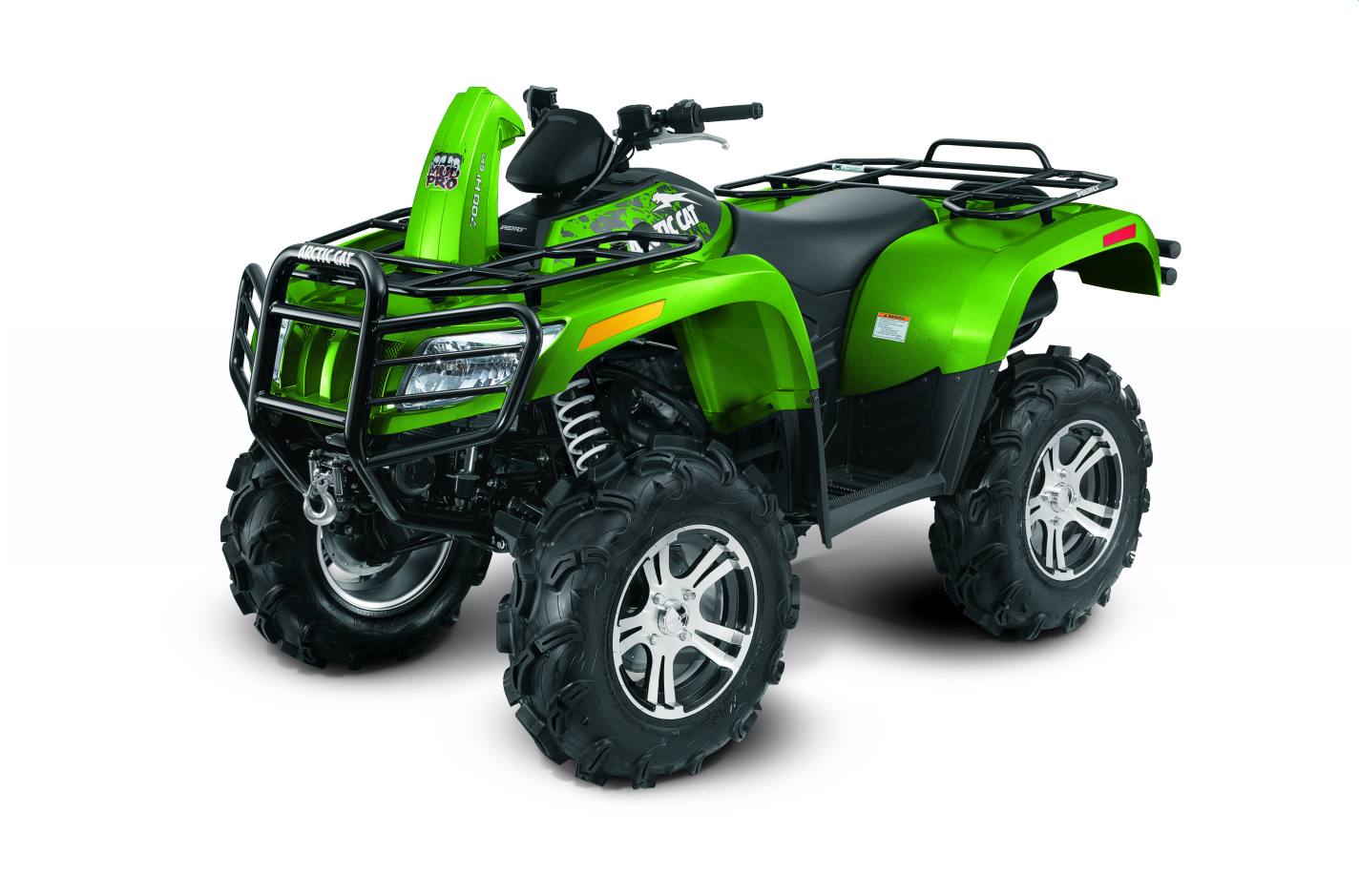

2010 Arctic Cat MudPro 700 H1 EFI
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Specifications
    • Displacement (cc): 695
    • Engine Type: SOHC, 4-Stroke, 4-Valve
    • Bore x Stroke (mm): 102 x 85
    • Cooling System: Liquid w/Fan
    • Transmission: Automatic CVT with EBS, HilLo Range & Reverse
    • Drive System: 2/4 WD + Diff Lock
    • Overall Width (in./cm): 47.5/120.6
    • Overall Height (in./cm): 51.8/131.6
    • Overall Length (in/cm): 86.5/219.7
    • Wheelbase (in./cm): 50/127
    • Suspension Travel- Front (in./cm): 10/25.4
    • Suspension Travel- Rear (in/cm): 10/25.4
    • Ground Clearance (in./cm): 14/35.6
    • Suspension Type - Front: Double A-Arm
    • Suspension Type - Rear: Double A-Arm
    • Front Brakes: Hydraulic Disc
    • Rear Service Brake: Hydraulic Disc
    • Tires - Front: 28x9-14 (5)
    • Tires - Rear: 28x9-14 (5)
    • Max Fuel Capacity (gal./liters): 5.7/21.6
    • Rack Capacity - Front (Ibs./kg): 100/45.4
    • Rack/Box/Flatbed Capacity - Rear (Ibs./kg): 200/90.8
    • Towing Capacity (Ibs./kg): 1050/476.3
    • Alternator Capacity (amps): 25
    • Speedometer: Analog
    • Odometer: Digital
    • Dry Weight (Ibs./kg): 780/353.8
    • Minimum Operator Age: 16
    • Available Colors: Arctic Metallic Green
    • Special Features: Aluminum Wheels, Front & Rear Bumpers, Winch

    Specifications

    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 695 cc
    Bore x Stroke 102 x 85 mm
    Engine Cooling Liquid w/Fan
    Alternator 25 amp
    Chassis
    Front Suspension Double A-Arm
    Front Travel 10 in. (25.4 cm)
    Front Brake Type Hydraulic Disc
    Front Tires 28x9-14 (5)
    Rear Travel 10 in. (25.4 cm)
    Rear Suspension Double A-Arm
    Rear Brake Type Hydraulic Disc
    Rear Tires 28x9-14 (5)
    Dimensions/Capacities
    Dry Weight 780 lbs. (353.8 kg)
    Front Rack Capacity 100 lbs. (45.4 kg)
    Rear Rack Capacity 200 lbs. (90.8 kg)
    Towing Capacity 1050 lbs. (476.3 kg)
    Fuel Capacity 5.7 in. (21.6 l)
    Ground Clearance 14 in. (35.6 cm)
    Machine Dimensions (LxWxH) 86.5 x 47.5 x 51.8 in. (219.7 x 120.6 x 131.6 cm)
    Wheelbase 50 in. (127 cm)
    Drive Train
    Drive Train 2/4 WD + Diff Lock
    Transmission Automatic CVT with EBS, HilLo Range & Reverse
    General
    Speedometer Analog
    Odometer Digital
    Colors Arctic Metallic Green

    Compare Models

    		 Print








    Year 2010
    Manufacturer Arctic Cat
    Model MudPro 700 H1 EFI
    Style Utility
    MSRP* $9,899.00
    Chassis
    Front Suspension Double A-Arm
    Front Travel 10 in. (25.4 cm)
    Front Brake Type Hydraulic Disc
    Front Tires 28x9-14 (5)
    Rear Suspension Double A-Arm
    Rear Travel 10 in. (25.4 cm)
    Rear Brake Type Hydraulic Disc
    Rear Tires 28x9-14 (5)
    Frame
    Dimensions/Capacities
    Dry Weight 780 lbs. (353.8 kg)
    Front Rack Capacity 100 lbs. (45.4 kg)
    Rear Rack Capacity 200 lbs. (90.8 kg)
    Towing Capacity 1050 lbs. (476.3 kg)
    Fuel Capacity 5.7 in. (21.6 l)
    Ground Clearance 14 in. (35.6 cm)
    Machine Dimensions (LxWxH) 86.5 x 47.5 x 51.8 in. (219.7 x 120.6 x 131.6 cm)
    Wheelbase 50 in. (127 cm)
    Drive Train
    Drive Train 2/4 WD + Diff Lock
    Final Drive
    Transmission Automatic CVT with EBS, HilLo Range & Reverse
    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 695 cc
    Bore x Stroke 102 x 85 mm
    Cylinders
    Engine Cooling Liquid w/Fan
    Fuel System
    Starting System
    Alternator 25 amp
    General
    Speedometer Analog
    Tachometer
    Odometer Digital
    Lighting
    Colors Arctic Metallic Green
    Warranty

    Current Promotions

    There are currently no promotions available for this product.
